SQL Server

SQL Server is a relational database management system (RDBMS) developed by Microsoft. ClickPipes supports using SQL Server as both a source and target database, helping you quickly build real-time data synchronization pipelines. In this guide, we will walk you through how to add SQL Server as a data source in ClickPipes.

Supported Versions and Architecture​

Single-node architecture for SQL Server 2008, 2008 R2, 2012, 2014, 2016, 2017, 2019, 2022.

Supported Data Types​

CategoryData Types
Stringchar, varchar, nchar, nvarchar, text, ntext, varchar(max), nvarchar(max)
Integertinyint, smallint, int, bigint
Decimaldecimal, numeric, money, real, float
Date/Timedate, time, datetime, datetime2, smalldatetime, datetimeoffset
Binarybinary, varbinary, varbinary(max), timestamp
Othersuniqueidentifier, bit, image, xml, geography

Considerations​

  • Incremental data capture in SQL Server is based on Change Data Capture (CDC). ClickPipes polls the CT (Change Tracking) tables of each synchronized table to capture data changes. It is recommended to limit the number of tables in a single sync task to reduce the polling cycle and lower the incremental data delay. For low-performance databases, to avoid frequent CT table queries affecting performance, consider enabling CDC only at the table or column level as needed and adjust CT table data retention to reduce disk usage.

    -- Set CT table data retention to 24 hours, default is 3 days
    EXEC sys.sp_cdc_change_job @job_type = N'cleanup',
                               @retention = 24;

  • SQL Server's CDC solution has limited support for DDL capture. Implicitly committed DDLs are not recorded in the cdc.ddl_history table, which may affect synchronization. Additionally, after executing DDL operations, the CT table does not update automatically, and ClickPipes relies on polling to detect and rebuild the CT table. Therefore, if DDL and DML occur simultaneously or within a short period, it may lead to DML data loss.

  • When SQL Server is used as the source database and a DDL operation (such as adding a column) is performed on the fields of a table under incremental sync, you will need to restart change data capture for the table to avoid data synchronization errors or failures.

Restart change data capture for the corresponding table
-- Disable change data capture for the table
GO
EXEC sys.sp_cdc_disable_table
@source_schema = N'[Schema]',
@source_name = N'[Table]',
@capture_instance = N'[Schema_Table]'
GO
-- The capture_instance is usually the combination of schema_table. You can query its actual value with the following command:
EXEC sys.sp_cdc_help_change_data_capture
@source_schema = N'[Schema]',
@source_name = N'[Table]';

-- Enable change data capture for the table
USE [DatabaseName]
GO
EXEC sys.sp_cdc_enable_table
@source_schema = N'[Schema]',
@source_name = N'[Table]',
@role_name = N'[Role]'
GO

Limitations​

  • Tables with CDC enabled cannot use the truncate table statement or modify field names with sp_rename.
  • CDC can only be enabled or disabled at the table level. If it was previously disabled, setting incremental sync in task configurations based on a specific time will be invalid.
  • When inserting or updating large fields, CDC only processes up to 64KB by default. It is recommended to use column-level CDC for handling large fields.

Prerequisites​

tip

This guide uses SQL Server 2017 on Windows Server 2019 as an example. If you are deploying on Linux as a source database, you will also need to install and enable SQL Server Agent.

  1. Log in to SQL Server Management Studio or sqlcmd with administrator privileges (e.g., sa).

  2. Execute the following commands to create a user for data replication/transformation tasks:

    -- Create a login account
    CREATE LOGIN login_name WITH PASSWORD='passwd', default_database=database_name;

    -- Create a database user
    CREATE USER login_name FOR LOGIN login_name with default_schema=schema_name;
    • login_name: The username.
    • passwd: The user's password.
    • database_name: The default database the user will log into.
    • schema_name: The database schema name (e.g., dbo), which serves as the namespace for objects like tables, views, procedures, and functions. More info: Create a Database Schema.

    Example: Create a user clickpipes to log into the demodata database with dbo schema:

    -- Create login account
    CREATE LOGIN clickpipes WITH password='clickpipes@123456', default_database=demodata;

    -- Create a database user
    CREATE USER clickpipes FOR LOGIN clickpipes with default_schema=dbo;

  3. Grant permissions to the newly created user, or customize permissions based on business needs.

    -- Grant select permission on all tables in the specified schema
    GRANT SELECT ON SCHEMA::schema_name TO login_name;

    Example: Grant the clickpipes user select permission on all tables in the dbo and cdc schemas:

    GRANT SELECT ON SCHEMA::dbo TO clickpipes;
    GRANT SELECT ON SCHEMA::cdc TO clickpipes;

  4. If you need to capture incremental changes from the source database for synchronization, follow these steps:

    1. Enable SQL Server Agent.

    2. Check the database's log file size limit via sys.master_files documentation. If the log file size is too small, it may prevent logs from growing and affect CDC functionality.

    3. Enable CDC at the database and table levels using the following commands:

      • Enable CDC at the database level:

        -- Enable CDC
        USE database_name;
        GO
        EXEC sys.sp_cdc_enable_db;
        GO

        -- Check if CDC is enabled, a value of 1 in is_cdc_enabled indicates it is enabled
        SELECT [name], database_id, is_cdc_enabled
        FROM sys.databases
        WHERE [name] = N'database_name';
        GO

      • Enable CDC at the table level:

        USE database_name;
        GO
        EXEC sys.sp_cdc_enable_table
        @source_schema = N'schema_name',
        @source_name   = N'table_name',
        @capture_instance = NULL,
        @role_name     = N'role_name',
        @supports_net_changes = 1;
        GO

        For tables without primary keys:

        USE database_name;
        GO
        EXEC sys.sp_cdc_enable_table
        @source_schema = N'schema_name',
        @source_name   = N'table_name',
        @capture_instance = NULL,
        @role_name     = N'role_name',
        @supports_net_changes = 0;
        GO
        • database_name: The database name.
        • schema_name: The schema name (e.g., dbo).
        • table_name: The table name.
        • role_name: The role name for accessing change data (can be set to NULL).
        • capture_instance: The default is NULL, but a new capture instance can be specified if a conflict arises with an existing instance.

Enable SSL (Optional)​

To further enhance the security of the data connection, you can choose to enable SSL (Secure Sockets Layer) encryption for SQL Server databases. This provides encryption at the transport layer for network connections, enhancing the security of communication data while ensuring data integrity. The specific steps are as follows:

tip

After completing the configuration, be sure to securely store the certificate-related files, as they will be used later when configuring connections.

Add SQL Server Data Source​

  1. Log in to ClickPipes platform.

  2. In the left-hand navigation bar, click Connections.

  3. Click Create on the right-hand side of the page.

  4. In the pop-up window, search for and select SQL Server.

  5. In the redirected page, fill in the SQL Server connection details as described below:

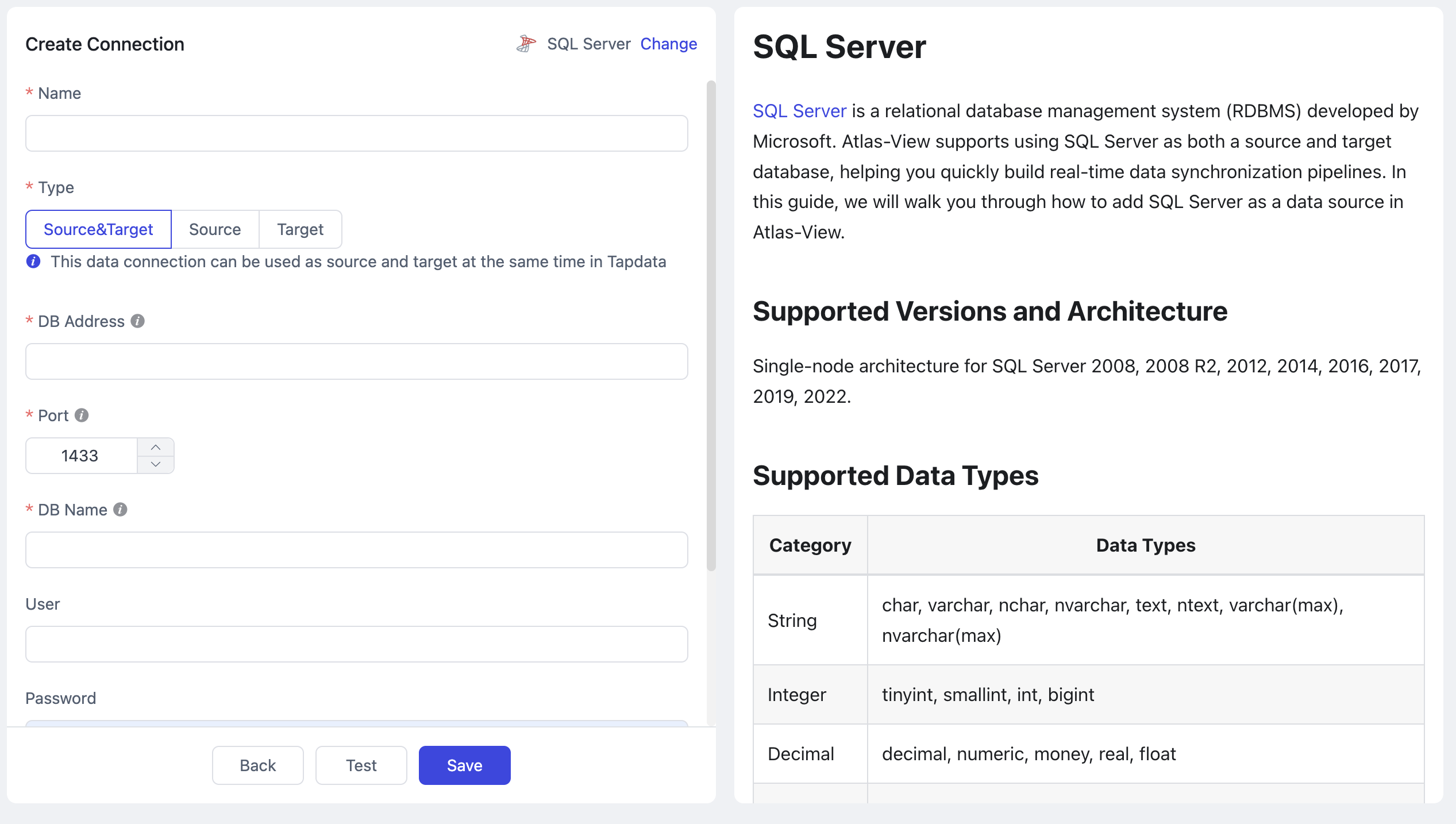

    SQL Server Connection Example

    • Connection Settings
      • Name: Enter a unique and meaningful name.
      • Type: Choose whether SQL Server is a source or target database.
      • DB Address: The address of the database.
      • Port: The port number for the database.
      • DB Name: The name of the database. Each connection corresponds to a single database. Create additional connections for multiple databases.
      • Schema: The schema name. Each database can have multiple schemas, and the default is dbo.
      • User: The database account.
      • Password: The password for the database account.

  6. Click Test, and if the test passes, click Save.

    tip

    If the connection test fails, follow the page prompts to resolve the issue.

FAQs​

  • Q: Why is the SQL Server incremental task not running, and the task log shows the warning: "open cdc failed"?

    A: Check the prerequisites for incremental capture. It may be due to residual resources left by previous CDC tools. Restarting the database-level CDC may resolve the issue.

  • Q: Is SQL Server 2005 supported?

    A: SQL Server 2005 does not support CDC. Incremental data capture can be done via field polling, or by using the following method:

    SQL Server 2005 as a Source Solution
    Since CDC is supported from SQL Server 2008 onward, for earlier versions, you can simulate change data capture using Custom SQL. When replicating data from older versions, the source table must have a change-tracking column, such as LAST_UPDATED_TIME, which is updated with every insert or update. When creating the data replication task, set the task synchronization type to Full, enable Repeat Custom SQL as True, and provide appropriate Custom SQL in the mapping design.

  • Q: When certain tables cannot enable CDC while others work normally. How can I resolve this issue without restarting the entire database?

    A: You can resolve this by manually clearing the CDC metadata for the affected table (e.g., change capture tables). Use the following SQL statements to perform the cleanup:

    -- Replace with the actual schema and table name
    DROP TABLE cdc.<schema>_<tableName>_CT;
    DELETE FROM cdc.captured_columns WHERE object_id = OBJECT_ID('<schema>.<tableName>');
    DELETE FROM cdc.change_tables WHERE capture_instance = '<schema>_<tableName>';
    DROP FUNCTION cdc.fn_cdc_get_all_changes_<schema>_<tableName>;
    DROP FUNCTION cdc.fn_cdc_get_net_changes_<schema>_<tableName>;

Additional Reading​

This section addresses common issues encountered when using the change data capture feature. For more information, refer to the official Microsoft documentation.

  • Cleaning up CDC Logs

    SQL Server does not automatically clean up CDC logs. You need to configure a cleanup job as shown below:

    -- retention period is in minutes, this sets it to 2 days (2880 minutes)
    USE AdventureWorks2012;
    GO
    EXECUTE sys.sp_cdc_change_job
        @job_type = N'cleanup',
        @retention = 2880;
    GO

  • Enabling CDC for the Entire Database

    -- Replace clickpipes with the actual database name
    -- Replace INSURANCE with the actual schema name
    USE clickpipes
    GO
    EXEC sys.sp_cdc_enable_db;
    GO

    DECLARE @table_name varchar(100);
    DECLARE @database_name varchar(100);
    DECLARE @schema_name varchar(100);

    SET @database_name = 'clickpipes';
    SET @schema_name = 'INSURANCE';

    DECLARE my_cursor CURSOR FOR SELECT TABLE_NAME
                                 FROM clickpipes.INFORMATION_SCHEMA.TABLES
                                 WHERE TABLE_CATALOG = @database_name
                                   AND TABLE_SCHEMA = @schema_name;
    OPEN my_cursor;
    FETCH NEXT FROM my_cursor INTO @table_name;

    WHILE @@FETCH_STATUS = 0
    BEGIN
        BEGIN TRY
            EXEC sys.sp_cdc_enable_table
                 @source_schema = @schema_name,
                 @source_name = @table_name,
                 @role_name = NULL;
        END TRY
        BEGIN CATCH
            PRINT('[ERROR] ' + @table_name);
        END CATCH;

        FETCH NEXT FROM my_cursor INTO @table_name;
    END

    CLOSE my_cursor;
    DEALLOCATE my_cursor;

  • Disabling CDC for the Entire Database

    -- Replace clickpipes with the actual database name
    -- Replace INSURANCE with the actual schema name
    USE clickpipes
    GO

    DECLARE @table_name varchar(100);
    DECLARE @database_name varchar(100);
    DECLARE @schema_name varchar(100);

    SET @database_name = 'clickpipes';
    SET @schema_name = 'INSURANCE';

    DECLARE my_cursor CURSOR FOR SELECT TABLE_NAME
                                 FROM clickpipes.INFORMATION_SCHEMA.TABLES
                                 WHERE TABLE_CATALOG = @database_name
                                   AND TABLE_SCHEMA = @schema_name;
    OPEN my_cursor;
    FETCH NEXT FROM my_cursor INTO @table_name;

    WHILE @@FETCH_STATUS = 0
    BEGIN
        BEGIN TRY
            EXEC sys.sp_cdc_disable_table
                 @source_schema = @schema_name,
                 @source_name = @table_name,
                 @capture_instance = 'all';
        END TRY
        BEGIN CATCH
            PRINT ('[ERROR] ' + @table_name);
        END CATCH;

        FETCH NEXT FROM my_cursor INTO @table_name;
    END

    CLOSE my_cursor;
    DEALLOCATE my_cursor;

    EXEC sys.sp_cdc_disable_db;
    GO
